7.5 Proxying Without a Proxy Server

Some services, particularly the so-called "store-and-forward" services such as SMTP , NNTP , and NTP , naturally support proxying. These services are all designed so that messages (email messages for SMTP , Usenet news postings for NNTP , and clock settings for NTP ) are received by a server and then stored until they can be forwarded to another appropriate server or servers. For SMTP , the messages are forwarded towards an email message's destination. For NNTP and NTP , the messages are forwarded to all neighbor servers. With such a scheme, each intermediate server is effectively acting as a proxy for the original sender or server.

If you examine the "Received:" headers of incoming Internet email (these headers trace a message's path through the network from sender to recipient), you quickly discover that very few messages travel directly from the sender's machine to the recipient's machine. It's far more common these days for the message to pass through at least four machines:

Each of the intermediate servers (the mail gateways) is acting as a proxy server for the sender, even though the sender may not be dealing with them directly. Figure 7.2 illustrates this situation.

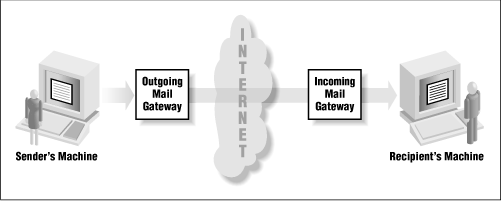

Figure 7.2: Store-and-forward services (like SMTP ) naturally support proxying

Figure 7.2
