Chapter 8. System Management Tools

Contents:

Diagnostic Utilities
Kernel Utilities
System Configuration

Mac OS X comes with many tools for tweaking and spying on various aspects of your system, including memory, kernel modules, and kernel state variables. Some of these tools come directly from BSD, while others are unique to Mac OS X. Most of the BSD-derived utilities have been filtered through Mach and NeXTSTEP on their way to Mac OS X.

For more details on any of these utilities, see their respective manpages.

8.1. Diagnostic Utilities

Mac OS X includes many diagnostic utilities that you can use to monitor your system and investigate problems.

8.1.1. top

The top utility displays memory statistics and a list of running processes. It is divided into two regions: the top region contains memory statistics and the bottom region contains details on each process.

TIP: The Mac OS X version of top is based on the one used in early versions of BSD. It was ported to Mach in 1988, to NeXTSTEP in 1990, and to Mac OS X in 1999.

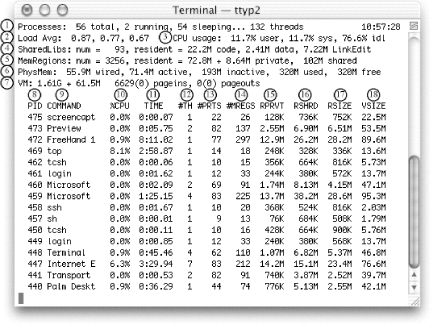

You can specify the number of processes to show by supplying a numeric argument. By default, top refreshes its display every second and sorts the list of processes by process ID (PID) in descending order. You can set top to sort by CPU utilization with -u, and you can specify the refresh delay with the -s option. Figure 8-1 shows the output of top -u 10 (if you wanted to refresh the output every 3 seconds, you could run top -s3 -u 10).

Figure 8-1

Figure 8-1. Sample output from top

Table 8-1 describes the values shown in the top region, and Table 8-2 describes the columns in the bottom region (process information).

Table 8-1. Memory information displayed by top

Item number

Item

Description

1
Processes

The number of processes and threads. A running process is currently using CPU time, while a sleeping process is not.

2
Load Avg.

The average system load (number of jobs vying for the CPU's attention) over the last 1, 5, and 15 minutes.

3
CPU usage

A breakdown of CPU usage, listing time spent in user mode, kernel (sys) mode, and idle time.

4
SharedLibs

The number of shared libraries in use, along with their memory utilization.

5
MemRegions

The number of Mach virtual memory regions in use, along with memory utilization details.

6
PhysMem

The physical memory utilization. Memory that is wired cannot be swapped to disk. active memory is memory that's currently being used, inactive memory is memory that Mac OS X is keeping "on deck" for processes that need it, and free memory is memory that's not being used at all.

7
VM

The virtual memory statistics, including the total amount of virtual memory allocated (the sum of the VSIZE in the process list), as well as paging activity (data paged in and out of physical memory).

Table 8-2. Process information displayed by top

Item number

Item

Description

8
PID

Process ID

9
COMMAND

Program's name

10
%CPU

Percentage of the CPU that the process is using

11
TIME

Total amount of CPU time this process has used

12
#TH

Number of threads in this process

13
#PRTS

Number of Mach ports

14
#MREGS

Number of memory registers

15
RPRVT

Resident private memory

16
RSHRD

Resident shared memory

17
RSIZE

Resident memory

18
VSIZE

Process's total address space, including shared memory

8.1.2. fs_usage

The fs_usage utility shows a continuous display of filesystem-related system calls and page faults. You must run fs_usage as root. By default, it ignores anything originating from fs_usage, Terminal, telnetd, sshd, rlogind, tcsh, csh, or sh.

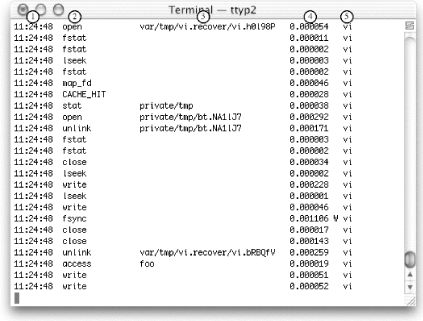

Figure 8-2 shows the output of fs_usage, which displays the:

  1. Timestamp

  2. System call

  3. Filename

  4. Elapsed time

  5. Name of the process

8.1.3. latency

latency measures the number of context switches and interrupts, and reports on the resulting delays, updating the display once per second. This utility must be run as root. Example 8-1 shows a portion of its output.

Example 8-1. Partial output from latency

Mon Apr  8 16:30:30                             0:01:58
                     SCHEDULER     INTERRUPTS
---------------------------------------------
total_samples            64431         179982

delays <  10 usecs       38731         176120
delays <  20 usecs       10763           2885
delays <  30 usecs        2934            447
delays <  40 usecs        1037            190
delays <  50 usecs         718             93
delays <  60 usecs         708             41
delays <  70 usecs         540             32
delays <  80 usecs         420             21
delays <  90 usecs         310             30
delays < 100 usecs         217             20
total  < 100 usecs       56378         179879

The SCHEDULER column lists the number of context switches and the INTERRUPTS column lists the number of interrupts.

8.1.4. sc_usage

The sc_usage utility samples system calls and page faults, displaying them onscreen. sc_usage must be run by root or by someone who has superuser privileges. The display is updated once per second. You must specify a PID, a command name, or a program to execute with the -E switch. For example, to monitor the Finder, use sc_usage Finder. Figure 8-2 shows the output of running sc_usage on the Finder. Table 8-3 explains sc_usage's output.

Figure 8-2

Figure 8-2. sc_usage monitoring the Finder

Table 8-3. Information displayed by sc_usage

Item number

Row

Description

1
TYPE

The system call type

2
NUMBER

The system call count

3
CPU_TIME

The processor time used by the system call

4
WAIT_TIME

The absolute time that the process spent waiting

5
CURRENT_TYPE

The current system call type

6
LAST_PATHNAME_WAITED_FOR

The last file or directory that resulted in a blocked I/O operation during a system call

7
CUR_WAIT_TIME

The cumulative time spent blocked

8
THRD#

The thread ID

9
PRI

The scheduling priority

8.1.5. vm_stat

The vm_stat utility displays virtual memory statistics. Unlike implementations of vm_stat in other Unix systems, it does not default to continuous display. Instead, it displays accumulated statistics.

To obtain a continuous display, specify an interval argument (in seconds), as in vm_stat 1. Figure 8-3 shows the output of vm_stat with no arguments, and Figure 8-4 shows the output of vm_stat 1. Table 8-4 describes the information that vm_stat displays (the item numbers correspond to the callouts in both figures).

Figure 8-3

Figure 8-3. vm_stat displaying accumulated statistics

Figure 8-4

Figure 8-4. vm_stat's continuous output

Table 8-4. Information displayed by vm_stat

Item number

Accumulated mode

Continuous mode

Description

1
Pages free
free

Total free pages

2
Pages active
active

Total pages in use that can be paged out

3
Pages inactive
inac

Total inactive pages

4
Pages wired down
wire

Total pages wired into memory (cannot be paged out)

5
Translation Faults
faults

Number of times vm_fault has been called

6
Pages copy-on-write
copy

Number of faults that resulted in a page being copied

7
Pages zero filled
zerofill

Number of pages that have been zero-filled

8
Pages Reactivated
reactive

Number of pages reclassified from inactive to active

9
Pageins
pagein

Number of pages moved into physical memory

10
Pageouts
pageout

Number of pages moved out of physical memory
